The Coordinates

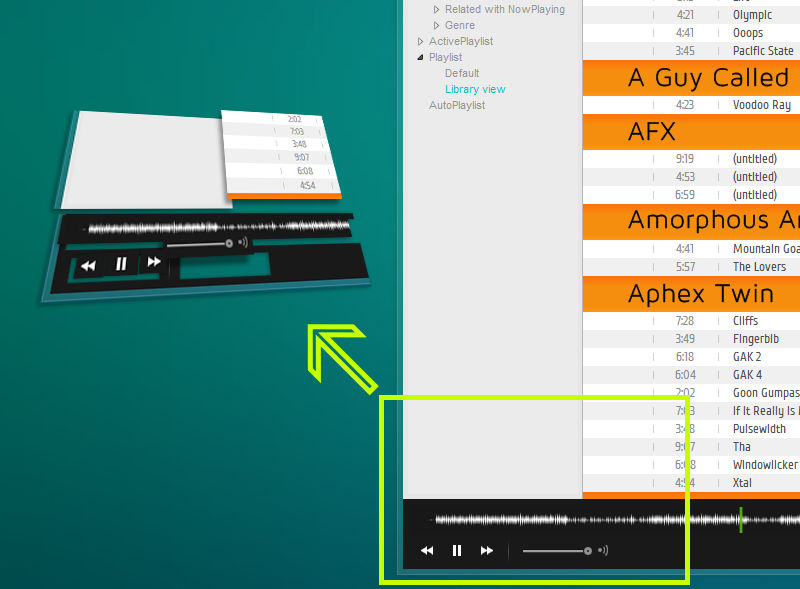

Once you click "Configure", the PanelList tab shows the current UI elements (PSS or components) that are submitted to (or managed by, if you want) the PSS you are currently editing. The elements are listed from top to bottom, meaning the first one is on the top layer, the last one on the bottom layer ; you have to take this into account if one panel or element is supposed to cover the other(s). Tick "forced layout" to allow panels and elements oversizing each others and other tricks. You can use TF to edit values, which would be much more practical. For example, coordinates set by numbers are okay to set an element's position (x,y), but it may be wiser to use a TF value like %_width% (returns the windows' width) if the window must be resizable. Choose one or the other, depending on the case. Ticking "ignore panel size limits" allows you to arrange elements out of their panel's limits. "Hide panel on startup" should be used when you have a button to make the element appear. Be careful when editing those, quite often you don't see the element you just placed, cause it's out of range or hidden under another element.

Everytime you are done with editing one of these dialog boxes, hit "Apply". You will notice that when you hit "OK", you can't edit hierarchally previous elements : the dialog box is empty. You have to validate the whole modification by hitting "OK" down to "Apply" on the Layout tab before you can go back editing PSS and elements.

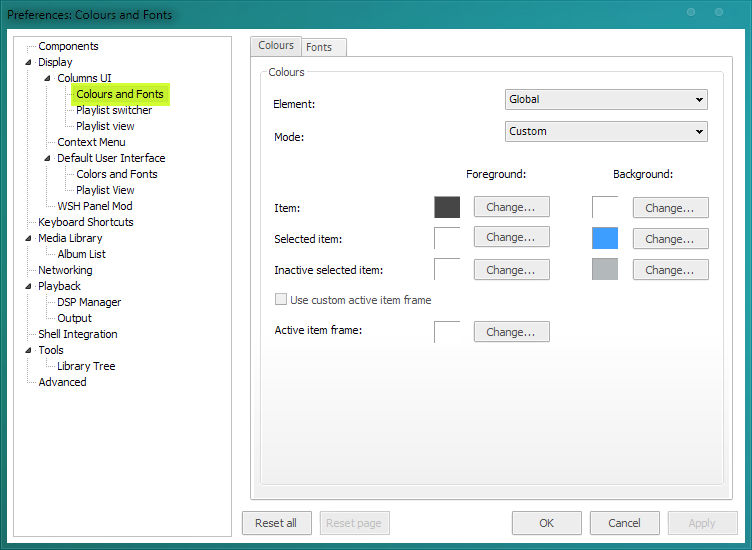

Colours and Fonts

Just like in the DUI options page, you can edit the colours and fonts of both stock foobar2000 UI and some third-party elements ; assuming you haven't set them already (using scripts for example). Some third-party components allow you to access their UI preferences both by right-clicking in it and by using this menu.

Scripts

The other important aspect of f2k skinning is the use of scripts in order to customize how a UI element works and/or is displayed. Scripts rely on a syntax called Title Formatting (TF) that I recommend you learn to handle (see the links above). Multiple display options and stock components of foobar2000 use TF : the window title, the status bar, the notification area, the columns playlist, the metadata display, etc. ; as well as several components among which Panel Stack Splitter, ELPlaylist/NG Playlist, LibraryTree, etc. TF may be quite easy, on the other hand it is limited in its possibilities. If you are ambitious, you might prefer switching to JavaScript through WSH Panel Mod (see below).

NG Playlist

Its display options are to be found in Prefs/Columns UI (or DUI)/Playlist View or by right-clicking on one of its column titles/Preferences.

ELPlaylist

Its display options can be found in the Prefs/Columns UI/Layout tab or by right-clicking anywhere in it/Settings (if you do so, remember to save your skin in .fcl or any other modification applied will reset ELPlaylist to its last saved settings, due to some sort of priority conflict). ELPlaylist's modifications are divided into two sections :

• what is true for the entire element : Style, Field definition, Behaviour and Misc tabs ;
• what is true for one script at a time (ELPlaylist can host multiple scripts, i.e. multiple custom library displays, which you can switch between) : Script and Grouping tabs.

Now let's take the tabs one by one. Remember there's a manual that explains everything (but in a very poor english). And notice that the scripts are run from top to bottom : for example, if you want to display a text string in front of a background image, make sure the image is called before the string ($imageabs... and later $drawstring). Again, taking a look into other people's work is very useful.

• The Script tab is where you... write scripts. Track list refers to the library track list of your music : this is where you display informations like title, length, track number, etc. Group header is also self-explanatory. As for the track list, you can display a hell lot of things in many ways using forms, colors, pictures, etc. Those two sections are updated everytime there is a track change or an action from the user (adding files, refreshing, etc.). Per Second is updated every second (+ go to Behaviour tab and tick "update every second") ; you can make a progress bar or display sliding informations, etc. Popup (Background) and Popup (Track) can be used to display info within a popup when the cursor stays over a track ; this option's settings are in the Misc tab.

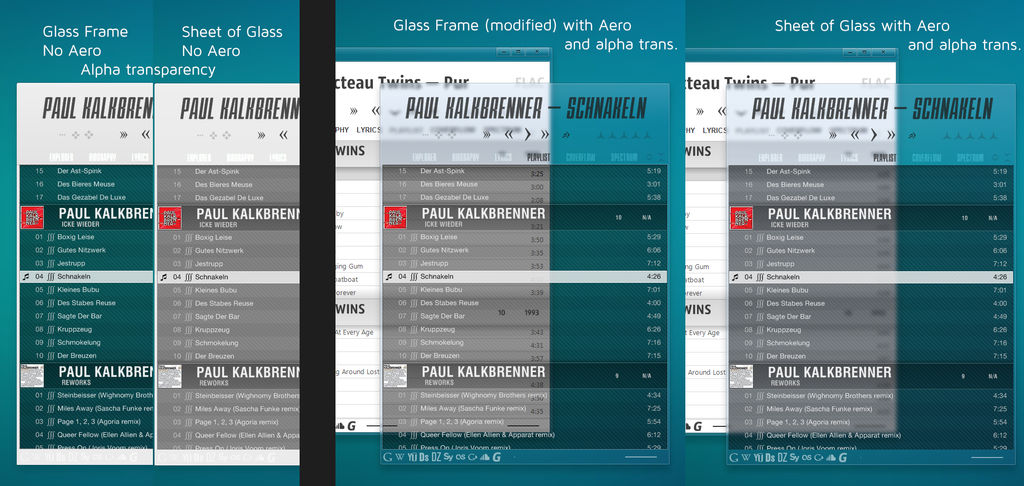

• The Style tab gathers the main display options for the entire UI element, as well as a few ones that can impact the track list. You can choose a custom default font, or directly edit it the scripts ; you can use multiple fonts and if you edit fonts in scripts, they will overpass this custom default font. You can edit odd and even items background to have an "iTunes look", but you can do it in the scripts as well. "Enable Visual Style" was designed for Vista and doesn't seem to be of any use. "Pseudo-Transparent" background however can be interesting, but we'll come back later on the topic of transparency.

• The Grouping tab sets the way your playlist viewer is organized. Group by allows you to name and store several grouping formats (such as Artist/Album, Albums only, tracklist sorted by artist, title, length, year, etc.) that you can access in the context menu ("Group by"). These options use TF. Group format refers to the way tracks are gathered, Sort format to the way tracks and/or groups are listed. Row height is the height of a single track line. Playlist Filter allows you to filter the library when using this particular grouping format ; i.e. you can have a grouping format called "Genre" where the tracks are filtered by genras. Finally, Associated titleformat script name allows you to link one particular grouping format to one particular display script (assuming you have given your script a name in Script tab/"Titleformat Script Presets"), that will automatically be activated when you activate this grouping format.

• The Field definition tab stores values that you don't want to repeat everytime it's needed in your scripts. Instead of writing a color value like 245-145-93-125 or a long path twenty times in your script, you can store them here and use the $get function.

• The Behaviour tab allows you to edit what happens when you interact with ELPlaylist.

• The Misc tab refers to the popup feature.

Panel Stack Splitter

It works just the same way with scripts. When you are in a Splitter Settings dialog box, there are four tabs (see above for PanelList tab).

• The Script tab allows you to use TF, just like in ELPlaylist. "PerTrack" will react on track change, "PerSecond" will be updated every second. This is where you can create text strings, buttons, display info, display images (graphic UI elements, background, artist pic, covers�), etc. ; see TF links for the possibilities. There is no complexity limit to your design, but keep in mind that the more elements the stock UI engine of foobar2000 has to create, the slower it will start and run. If you plan on creating a heavy and very complex skin, it can be wiser to switch to JScript.
• The Behaviour tab rules the behaviour of the panel.
• Global Variables is the equivalent of "Field definition".

You can submit as many PSS as you want to each others. If you select a component in the PanelList and hit "Configure", it will open its Preferences window ; sometimes this feature isn't available.

WSH Panel Mod

It's an extremely powerful component that simply host scripts in JScript or VBScript language. Almost anything is possible with it, far beyond TF's possibilities : you probably have seen some of Br3tt's work already. What's hard here is that you have to know JScript, or, as I'm doing so far, you can copy other people's scripts and modify them as far as you understand. A few samples are included in the component's package though. WSH Panel Mod is quite the key to an impressive skin.

Syntax basics

You probably won't write the syntax fluently right from the start, specially if it's your first contact with coding. It takes some time and -let's be honest- some endeavour to memorize sentences/functions, to avoid forgetting stuff and to get a good handle on the syntax' possibilities. Basically, the syntax used here is divided into two categories : values/field references and functions. A value or field reference is an information (size, position, color, opacity, metadata, count, etc.), a function is an action that is processed whether once-and-for-all (for example when starting foobar2000), at a specified moment (on track change...) or when you call it (by clicking on a button...). So generally speaking, a script is no more than a "find information, then call the action" process developped and multiplied. Thus, when you want to write a function, always make sure you bring the required information, or you might confront a crash or a big nothing and want to bang your head till you find the error. So we're gonna see the basics of understanding and organizing a script. Let's take a few examples.

We are in the Script tab of the first PSS. On this very simple script, I called a few graphic elements, some drawn, the others based on pictures ; some static, others dynamic.

• In yellow is a basic information provider, the directory of the images used in this script. The $puts function allows you to store an information/value under a name, so that it's easier to call all along the script. Here I named 'skin_path' the whole information that is the path, '%ps_foobar2000_path%\skin... etc.' ; so below, in the blue zone, I just need the $get function to call this value and then finish the path of the picture : $get(skin_path)\play.png.
• In the pink zone I drew the background of the toolbar and the slight grey border beneath. As the script runs from top to bottom, I drew the light grey background first ; then I added a gradient, and then the border. As you can see, I use both numerical and dynamic values. The dynamic values, may they be numerical values like here or metadata (like track tags), are called with %...% (whereas functions are called by $...). Here I wanted to set a background that fits the window's width even after resizing, so I called the value %_width%, which is relative and constantly updated.
• In the blue zone, I drew the playback buttons. You can see a very common use of the $if function (or $if statement) which allows you to set various actions depending on the state of a value or a component : it works like $if(thisvaluereturnstrue, dothisaction, otherwisedothat). This is where the syntax begins to be more complex. This function here rules the play/pause button, which won't react the same way whether there's an ongoing playback or not. To avoid drawing two simple buttons side-by-side, I have to use $if to call alternatively two different buttons at the same place : if playback is going, "pause" button is displayed, if not, "play" button is displayed.
